LV4700pro QR 1280*800 CMOS 5mil Payment Barcode Reader

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

LV4700pro QR 1280*800 CMOS 5mil Payment Barcode Reader

Brand Name : RAKINDA

Model Number : LV4700pro

Certification : CE, RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 200PCS/Week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Image Sensor : 1280*800 CMOS

Light Source : White LED

Resolution : ≥5mil

Symbol Contrast : 30%

Interface : RS-232, USB

Weight : 2KG

Contact Now

Product Features:

◆Rich Interface

Provide USB and RS232 interfaces to meet more interface requirements.
◆UIMG° Core Technology
Using self-developed sixth-generation UIMe@ core decoding technology, it can quickly read barcodes of various qualities.
◆Green and Low Power Consumption
The use of independent MLDC core technology greatly reduces operating power consumption and prolongs the service life of the equipment.
◆Excellent Screen Reading Ability
Special adjustments are made to screen barcodes, which can adapt to low-brightness and large-data screen barcodes with various types of films.



Product Parameters

  Product Name Long Distance Mobile Payment QR Scanner
Performance Image Sensor 1280 * 800 CMOS
Light Source White LED
Indicator Light Various colors are adjustable (default Alipay blue, WeChat green, other red)
Decoding Successful Prompt Buzzer Output, Adjustable Sound
Symbologies 2D QR Code
1D Code 128
Resolution ≥5mil

Typical Depth of Field

(Mobile payment code)

 Alipay 20mm-1500mm
WeChat 20mm-1500mm
Symbol Contrast 30%
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±45°
Field of View Horizontal 40.4°, Vertical 25.9°
Mechanical Interface RS-232, USB
Electrical Power Adapter 5V power adapter, with data cable to power the device
Operating Voltage 12 pin FPC horizontal socket: 3.3-5 VDC±5%
4 pin DuPont socket USB interface: 3.3-5 VDC±5%

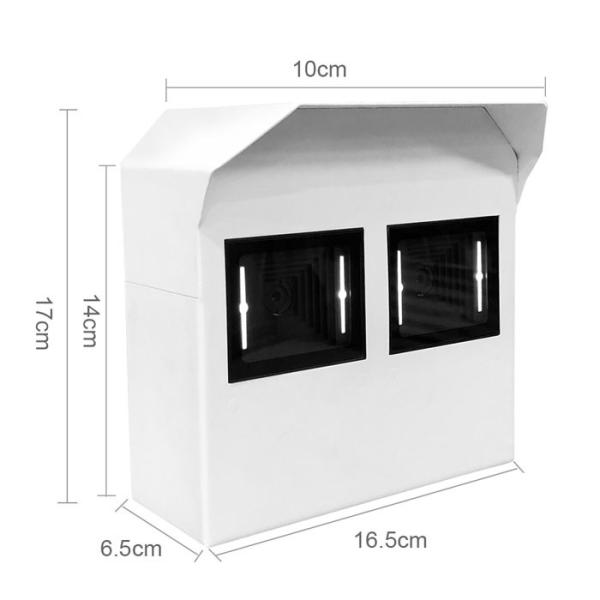

Dimensions 6.5(W)×10-16.5(D)×14-17(H)cm(max.)
Weight 2KG
Environmental Operating Temperature -40℃~+70℃
Storage Temperature -40℃~+80℃
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories Cable

USB Used to connect a host device.

RS232 Used to connect a host device.





LV4700pro QR 1280*800 CMOS 5mil Payment Barcode Reader

LV4700pro QR 1280*800 CMOS 5mil Payment Barcode ReaderLV4700pro QR 1280*800 CMOS 5mil Payment Barcode Reader
