Fixed mount barcode and qr code scanner data matrix micro USB barcode scanning module for ATM self service kiosks
Feature:
The RD4500-20 Fixed mount 2D imager module provides a self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper. It offers many differentiating features that simplify installation (e.g., cable connector compatibility and more mounting options) and enhance performance.Its unique design simplifies installation and deployment for a wide range of kiosk applications.
Application:
Potential applications include medical diagnostic and analytical equipment; rail, airport, resort, event, car park and border control access control kiosks; lottery terminals/ticket checkers; e-voting machines; retail point-of-sale self-checkout equipment; smart lockers; banking ATMs; and in-vehicle ticket validators used in buses, subways and trains
1)Self-service kiosks and ticket vending machines
2)Access control gates & turnstiles for stadia, building access & transportation
3)Retail voucher redemption and loyalty cards
4)Car park ticket machines and automatic barriers
5)Casino and TITO gaming machines
Interface:
The RD4500-20 2D fixed mount bar code reader supports USB, RS232, TTL, RS485 and Wiegand interfaces to meet different needs.
| Performance |
| Processor | IOTC 0370 CHIP |
| Image Sensor | 752×480 CMOS |

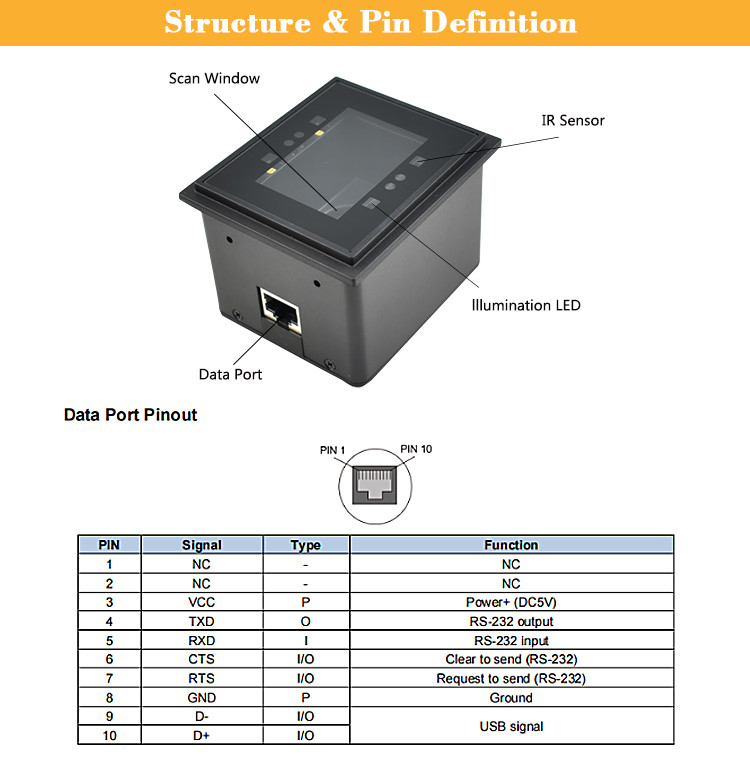

| Interface | RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS) |

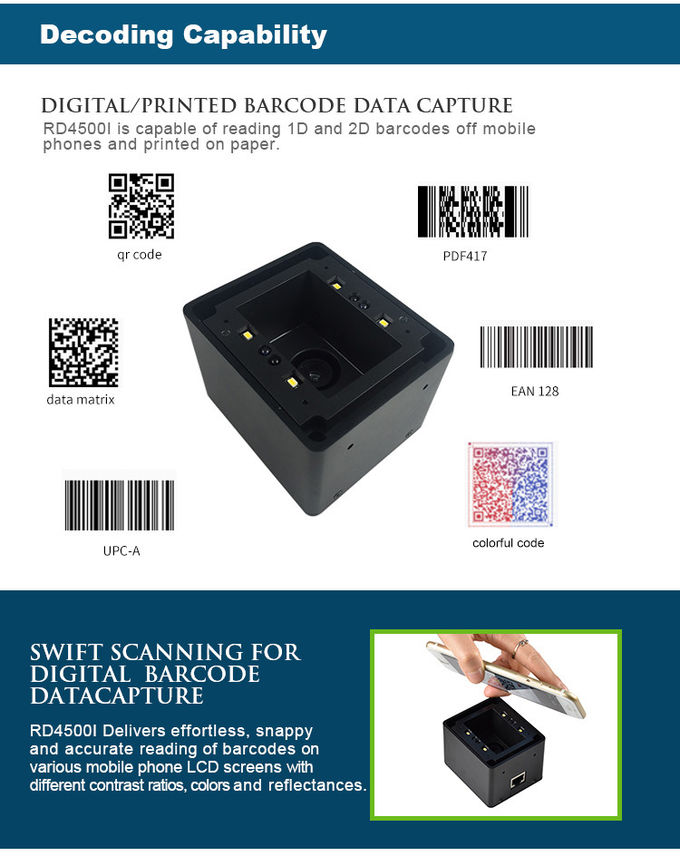

| Symbologies | 2D | PDF417, Data Matrix, QR Code |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey |
| Scan Mode Type | Sense mode |
| Resolution | 10mil |

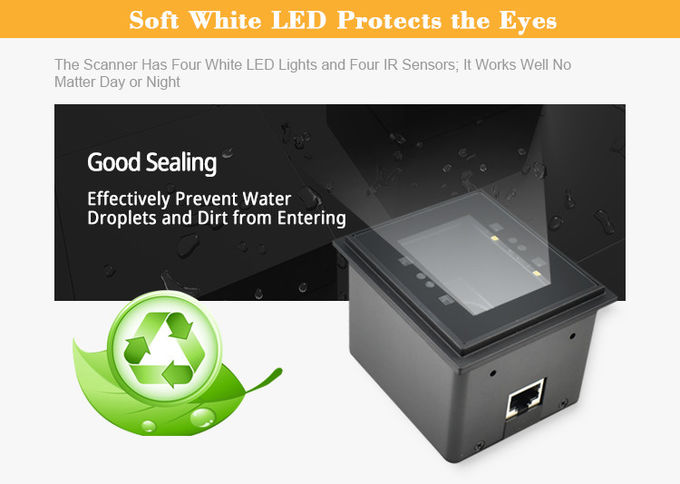

| Light Source | White LED |
| Scan Window | 38.3mm×60.4mm |
| PCS | ≥30% |
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| Mechanical/Electrical |
| Power Consumption | 1.75W (max.) |
| Notification | Beep |

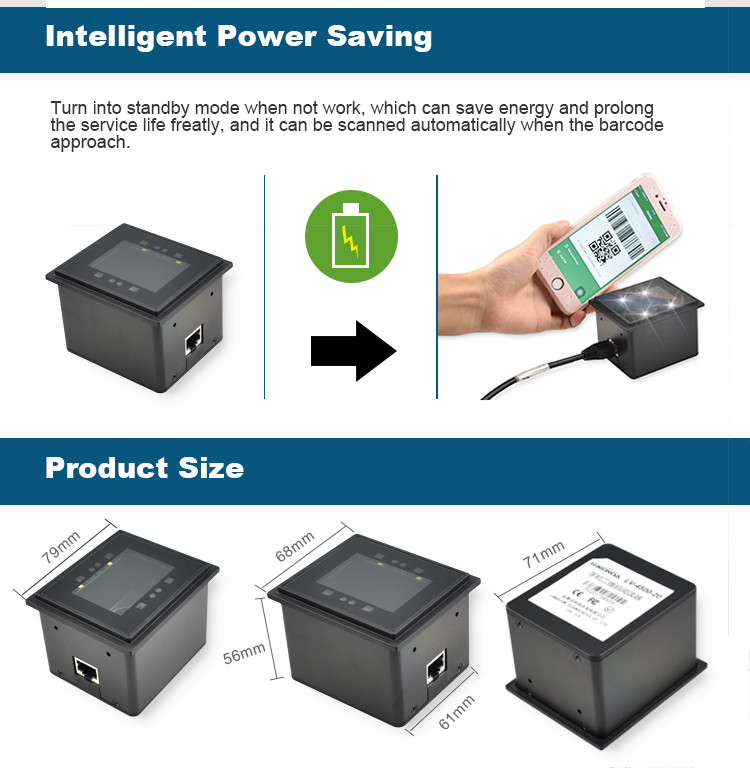

| Size (L x W x H) | 82 mm(L) X 72mm (W) X 52mm(H) |
| Weight | 300g
|
