High Sensitive Phone QR Code Scanner Module 752×480 CMOS Image Sensor

Name: High Sensitive Phone QR Code Scanner Module 752480 CMOS Image Sensor
Brand: RAKINDA
Price: 1 USD

Buy cheap High Sensitive Phone QR Code Scanner Module 752×480 CMOS Image Sensor product

Brand Name : RAKINDA

Model Number : LV4200

Certification : FCC,CE,Rosh

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 10000 pcs per month

Packaging Details : 14*11*8.5cm

Name : 1D 2d OEM Barcode Scanner Module

Image Sensor : 752×480 CMOS

Symbologies : 1D2D

Resolution : 5mil

Symbol Contrastof Field : ≥30% reflectance difference

Scan Angle : Roll: 360°, Pitch: ±40°, Skew: ±40°

Field of View : Horizontal 80°, Vertical 56°

Contact Now

High Sensitive Phone QR Code Scanner Module 752×480 CMOS Image Sensor

Snappy On-Screen Barcode Capture
The LV4200 can capture on-screenbarcodes effortlessly even when the screen is covered with protective film orset to its lowest brightness level.

Multiple Interfaces
The LV4200 supports USB and TTL-232 interfaces to meet diverse customer needs.

Two-In-One Design

Seamlessintegration of image sensor and decoder board makes the scan engine small, lightweightand easy for integration.

Low Power Consumption
Theadvanced technology incorporated inthe scan engine promises low power consumption and prolonged service life.

Application Scenarios (as an accessory)
Self-servicecabinets used in e-commerce, express delivery services and smart homes; ATMs;kiosks; queue machines; lottery machines; certificate makers.

LV4200_Datasheet_en.pdf

High Sensitive Phone QR Code Scanner Module 752×480 CMOS Image Sensor

Performance	Image Sensor	752×480 CMOS
	Light Source	White LED
	Symbologies	2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
	Symbologies	050, 080, 100, 140)
		1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
		UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
		Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
		Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
		RSS-Expand)
	Resolution	≥5mil
	Typical Depth of Field	EAN-13 10mm-55mm (13mil)
		PDF 417 15mm-35mm (6.67mil)
		Data Matrix 15mm-40mm (10mil)
		QR Code 10mm-50mm (15mil)
	Symbol Contrast	≥30% reflectance difference
	Scan Angle**	Roll: 360°, Pitch: ±40°, Skew: ±40°
	Field of View	Horizontal 80°, Vertical 56°
Mechanical/	Interface	TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
Electrical	Operating Voltage	3.0~5.5VDC
	Current@5VDC	Operating 160mA
		Sleep 12mA
	Dimensions	65.1(D)×61.1(W)×43.6(H)mm
	Weight	41.5g
Environmental	Operating Temperature	-20℃~+60℃ (-4°F~140°F)
	Storage Temperature	-40℃~+80℃(-40°F~176°F)
	Humidity	5%~95% (non-condensing)
	Ambient Light	0~100000lux (natural light)
Accessories	USB Cable	Used to connect the LV4200 to a host device.

Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.

Product Tags:

2d barcode module

barcode engine

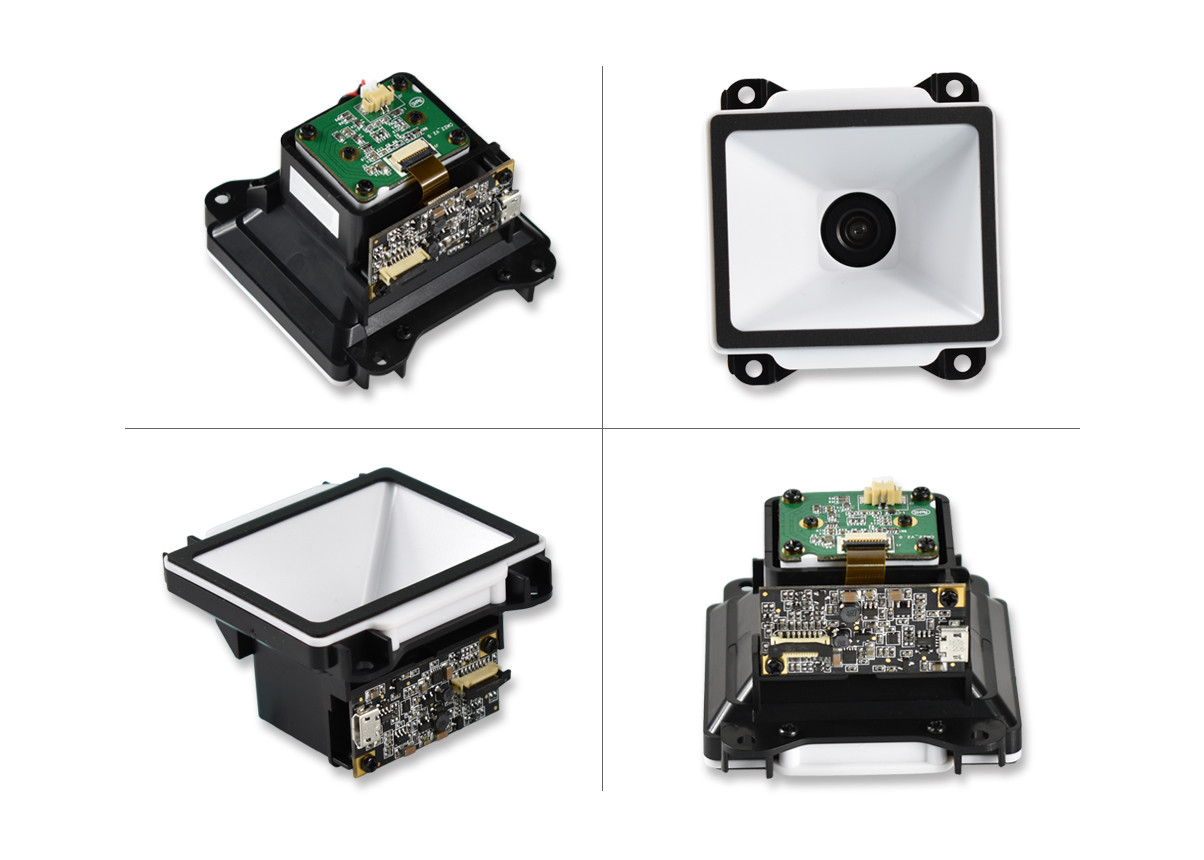

High Sensitive Phone QR Code Scanner Module 752×480 CMOS Image Sensor Images
