1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm

  • 1
  • 2

Brand Name : Rakinda

Model Number : LV3096

Certification : CE FCC ROHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 piece for a week

Delivery Time : 3-10 working days

Packaging Details : package in carton;

Name : Barcode Scanner Module

Interface : TTL-232, USB (optional)

Image Sensor : 752×480 CMOS

Resolution : > 5mil

Illumination : Red LED 625±10 nm

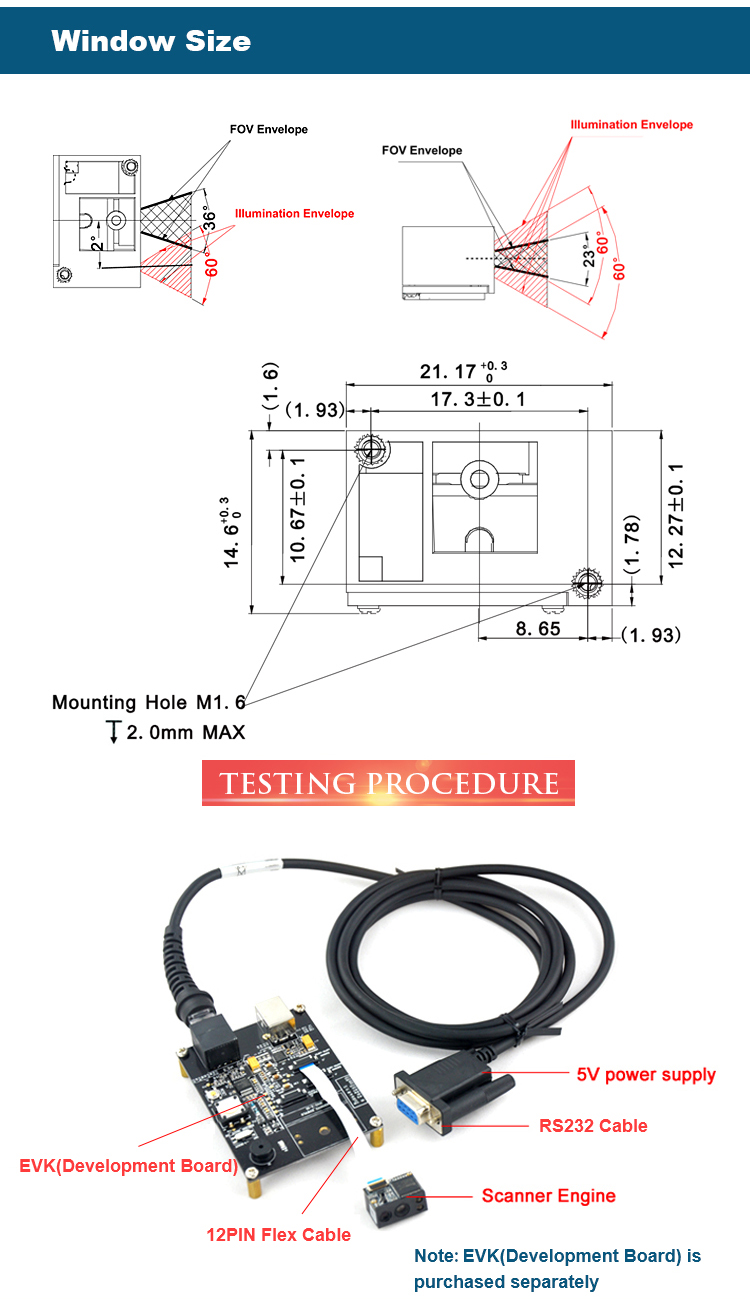

Dimensions : 21.17(W)×14.6(D)×11.52(H)mm

Contact Now

OEM TTL232, USB, RS232 1D 2D Mini Barcode Scanner Module

Product Parameters:



Interface TTL-232, USB (optional)
Image Sensor 752×480 CMOS
Symbologies

2D: PDF 417, DataMatrix

(ECC200,ECC000,050,080,100,140), QR Code



1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination Red LED 625±10 nm
Resolution > 5mil
Ambient Light 0 ~ 100,000 LUX
Power Consumption 0.76 W
Operating Voltage 3.3±10% VDC
Current @ 3.3 VDC Operating Current 230 mA
Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)
Sleep Current <5 uA
Dimensions 21.17(W)×14.6(D)×11.52(H)mm
Weight 5.0g
Operating Temperature -20℃~ +60℃



1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm

1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm

1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm

1D 2D Mini Barcode Scanner Module TTL232 USB RS232 752×480 CMOS Red LED 625nm
