Fast Decoding Fixed Mount Barcode Scanner LV3000U OCR MRZ QR For Production Line Kiosk

Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

Fast Decoding Fixed Mount Barcode Scanner LV3000U OCR MRZ QR For Production Line Kiosk

Brand Name : RAKINDA

Model Number : LV3000U

Certification : FCC.CE.Rosh

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 10000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : 1 per box

Name : Fixed Mount 2D Barcode Scanner

Image Sensor : 1280 x 800CMOS

Resolution : 960*640

Light Source : White LED Laser Diode or green LED

Precision : 3 mil

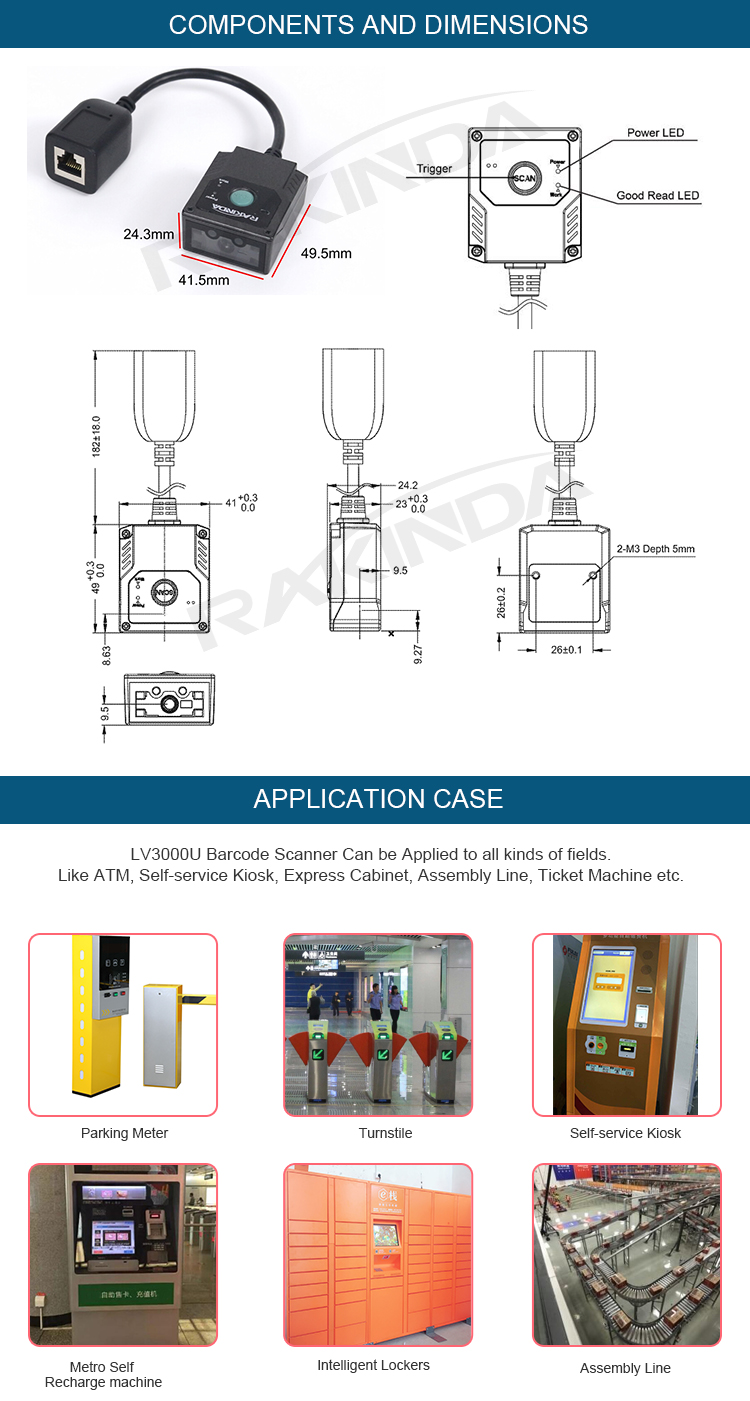

Dimensions : 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)

Weight : 75g

Sealing : IP54

Contact Now



Fast Decoding LV3000U OCR MRZ QR Scanner Using Production Line Kiosk



LV3000U Fixed Mount 2D Scanner is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.



Features:
1.IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2.Automatic Exposure Control (AEC)
The sensors in the LV3000U automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.
3.IP54-sealed Housing
The LV3000U is environmentally sealed to anIP54 rating to prevent dust, moisture and other contaminant from entering it.
4.Unmatched Reading Performance
The LV3000U is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
5.Highly Visible Laser Aimer
The LV3000U provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6.1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).



Fast Decoding Fixed Mount Barcode Scanner LV3000U OCR MRZ QR For Production Line Kiosk





Product name Fixed Mount 2D Barcode Scanner
Item number LV3000U
Interface RS232/ USB
Image Sensor 1280 x 800CMOS
Symbologies

2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc.

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 3 mil
Light Source

White LED

Laser Diode or green LED

Scan Mode Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop 1.5m
Power Consumption 1622mW (Typical)
Weight 75g
Dimensions 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification Beep, LED Indicator
Operating Temperature -20 ℃ to +60 ℃
Storage Temperature -40 ℃ to +70 ℃
Humidity 5% - 95% ( non-condensing )
Sealing IP54
Certification FCC Part15 Class B, CE EMC Class B



FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
