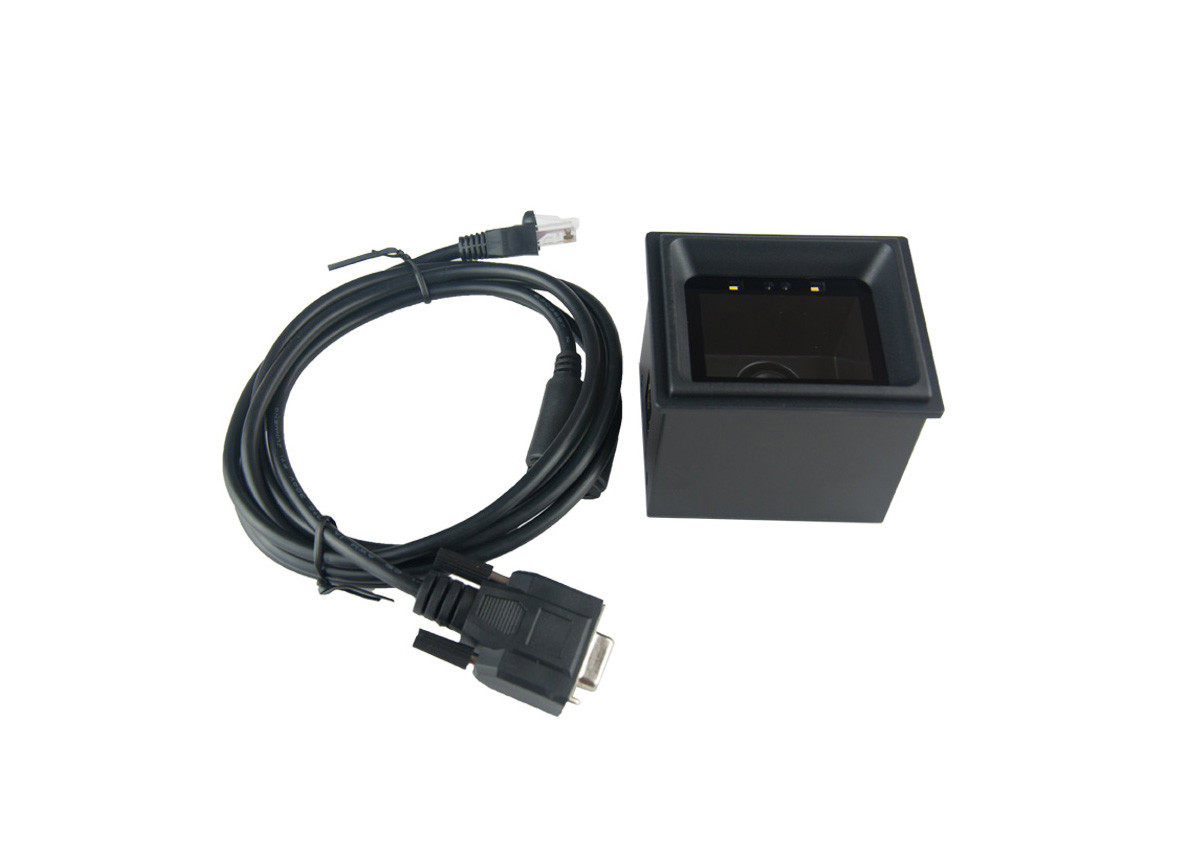

LV4500 2D Fixed Mount Barcode Scanner With Long And Short Range Distance

  • 1
  • 2

Brand Name : RAKINDA

Model Number : LV4500

Certification : CE, RoHS

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 PCS/ week

Delivery Time : within 5 working days after receiving the balance

Packaging Details : barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.

Item name : Fixed Mount 2D Barcode Scanner

Reading Precision : ≥ 10mil

Cable : USB, RS232

Features : Big scanning window with white light

Color : All black

Operating Voltage : 3.3±10% VDC

Weight : 280g

Size : 78.6 x 67.3 x 55.3mm

Contact Now

LV4500 2D Fixed Mount Barcode Scanner With long and short range distance



At present, NFC applications have a bright future. All parties including Internet companies, CUP, banks, mobile operators and handset manufacturers are stepping up their efforts in construction. With the smart phone upgrade, NFC has slowly become the standard. In many ways, it is undeniable that NFC payment products dominated by Unionpay have obvious security advantages over 2d code payment, and versatility has also rapidly risen with the upgrade of terminal manufacturers. NFC will enter the main stage of mobile payment. If the 2d code leads to new technical solutions in security, the mobile payment market may turn into NFC and 2d code.



Shenzhen Rakinda LV4500 which is good for reading both phone screen and printer and it can be long range and short range distance as customer requirement , it is absolutely good for reading QR code , the best choice for customer





Technical Specifications of  LV4500 Fixed Mount 2D Barcode Scanner

LV4500 2D Fixed Mount Barcode Scanner With Long And Short Range Distance

Performance Image Sensor 752*480 CMOS
Illumination White LED
Symbologies 2D PDF417, Data Matrix, QR Code, Chinese Sensible Code.
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey.
Resolution* ≥ 5 mil
Scan Mode Sense mode, Continuous mode
Scan Angle** Pitch: ±40°, Roll: 360°, Skew: ±40°
Scan Window 31.5mm×46.5mm
Symbol Contrast ≥25%
Interface RS-232, USB
FOV Horizontal: 75°, Vertical: 50°
Physical/Electric Dimensions (LxWxH) 78.7(W)×67.7(D)×53(H)mm (max.)
Weight 173 g
Notification Beep
Power consumption 534mW (typical)
Operating Voltage 5VDC±5%
Current@5VDC Operating Current: 108mA (typical), 114mA (max.)
Environmental Operating Temperature -20℃~60℃
Storage Temperature -40℃~70℃
Humidity 5%~95% (non-condensing)
ESD ±8 KV (air discharge); ±4 KV (direct discharge)
Certification FCC Part15 Class B, CE EMC Class B
Accessories Cable USB Used to connect the scanner to a host device.
  RS-232 Used to connect the scanner to a host device.



LV4500 2D Fixed Mount Barcode Scanner With Long And Short Range Distance
