Vending Machine Swift Barcode Scan Engine 11 Pin Pitch 1.25 Connector
LV12 1d barcode scanner module is the highest cost-effective OEM barcode scanner module. It can be applied to kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines, POS terminal etc.
Readable Barcode: 1D Barcode: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ ISSAN, Code 93, UCC/ EAN-128, GS1 Databar etc.
LV12 Datasheet en.pdf

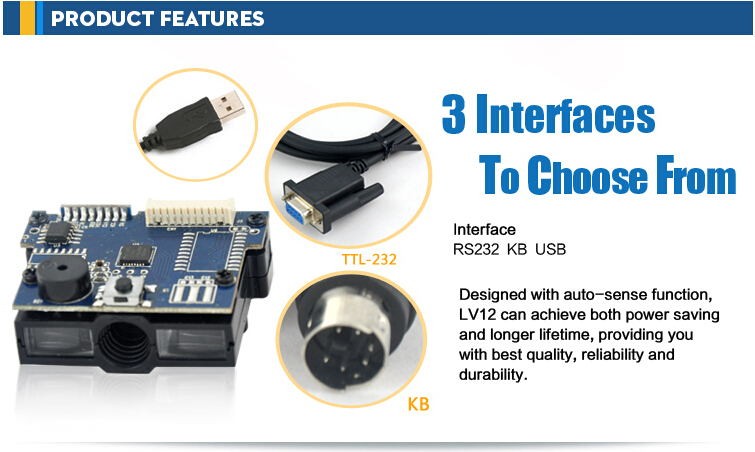

1. 3 Interfaces to Choose from
KB, USB, RS232
Designed with auto-sense function, LV12 can achieve both power saving and longer lifetime, providing you with best quantity, reliable and durability.
2. Auto-induction longer lifetime
LV12 is of CCD barcode decoding capabilities. LV12 decode board is powered by a fast processorand to decode a wide array of 1d barcodes. The decode board is compatible with utility, a PC- based software for easy configuration.
3. High flexibility
Designed with specialized application process for upgrading or modifying OEM devices, it save your time.
4. Highest cost-effective widest application range
LV12 barcode reader module can be applied to kiosks, medical instruments, vending machines etc.
Technical Specifications of LV12 1D barcode scanner
| Product name | 1D Barcode Scanner |
| Item number | LV12 |
| Interface | RS232/ USB/ KB |
| Image Sensor | Linear CCD Sensor |
| Processor Type | C8051 compatible |
| Operating Freq. | 24.5 MHz (Internal) |
| Scan Rate | 100 scans/sec ±10% |
| Reading Distance | 230mm@20mil/0.5mm, PCS90% |
| Print Contrast Ratio | PCS45%@4mil/0.1mm |
| Resolution | 5mil/0.127mm@PCS90% |
| Reading Angle | Test Conditions : Code 39, 10mil/0.25mm, PCS90% |
| Pitch Angle | 5°~70° (±5°) |
| Skew Tolerance | 5°~60° (±5°) |
| Light Source | Visible Red light 632nm LED |
| Ambient Light | 5000 Lux Max. |
| Weight | 17g |
| Dimensions | 44(W)mm*30(D)mm*19.2(H)mm |
| Operating Temperature | 0 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 70 ℃ |
| Relative Humidity | 20% - 95% ( non-condensing ) |
| Decode Capability | EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E,
ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,
Plessey, ITF14. |
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
