| Basic Parameters |
| Type | Android Industrial Printer Handheld Terminal |
| CPU | Quad-Core ARM Cortex A7 1.3GHz |
| Graphics Processor | Mali760-MP2 |
| Memory | 2G LPDDR2 RAM+16G EMMC ROM |
| OS | Android 5.1 |
| Color | Black |
| Display | 5'' high-resolution Multi-touch screen; Resolution: 1280*720 dpi
support 5 point finger touch and 3 tangible key |

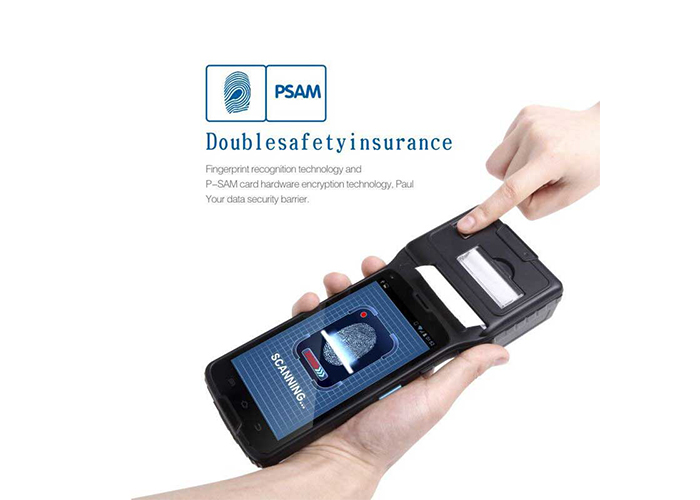

| Fingerprint sensor | Sensor: FPC1020F1; Processor: FPC2020Q1 (64 pin QFN 9 * 9 mm) |
| Thermal printer | 2'' 384 point thermal printer, velocity:15mm/s |
| Input Method | Handwriting,Stroke,Pinyin input method |

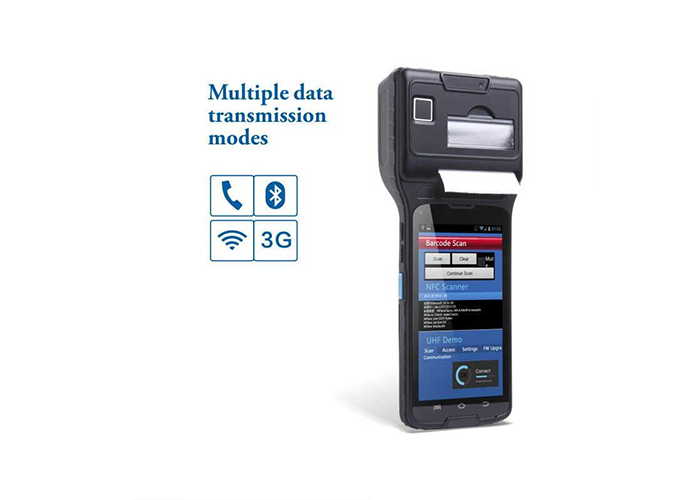

| Communication | GSM/WCDMA/FDD/TDS/TDD;
GSM Quad Band, TDS B34/39, WCDMA B1/2/5/8, TDD B38/39/40, FDD B1/3/7/8/20 |
| GPS | Built-in GPS, support A-GPS, GPS+BDS, Meter Level Localization |
| Port | Micro USB2.0, support OTG |
| Memory Interface | Micro SD card; expansion: 2G to 32G |
| Bluetooth | Bluetooth 4.0+EDR |
| Speaker | Single speaker,8±15% ohm |
| WLAN | Support 2.4G+5G, Support 802.11a/b/g/n mode and
WEP/WPA/WPA2-PSK/AES/WAPI PSK/802.1*EAP Encryption protocol |
| Camera | 8.0 Mega Pixel rear camera; 2.0 Mega Pixel front camera; Auto focus; with LED light |
| Battery | Li-Polymer 4000mAh |
| Standby Time | One week |
| Duration | 8 hours ( full function ) |
| IOT Functions(RFID, Barcode) |
| IOT Barcode | 1D Laser Barcode Scanner,2D Barcode Scanner (optional) |
| 1D Barcode | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E,Codebar, I nterleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC etc. |
| 2D Barcode | 2D Barcode Scanner, Support both 1D and 2D, Chinese sensible code (optional) |
| IOT RFID | Fully support NFC. Support 14443A/B,15693 Protocol, Reading Distance 2cm~5cm, reading position, battery cover. |
| Optional: Build-in UHF RFID, support EPC C1/G2,18000-6C reading and writing tags |
| Optional: 2.4G active RFID module, reading distance can reach 30~50m |
| Working Conditions |
| Operation Temperature | -25 ~ 65 ℃ |
| Storage Temperature | -30 ~ 70 ℃ |
| Humidity | 0 ~ 95% |
| Product Features |
| Gravity Sensor Support | Light Sensor Support | Distance Sensor Support |
| Microphone Support | Receiver Support | Vibrator Support |
| Accessories |
| Accessories | 4000mAh Battery x1 |
| USB cable x1 |
| Power Adapter x1 |
| User Guide x1 |
