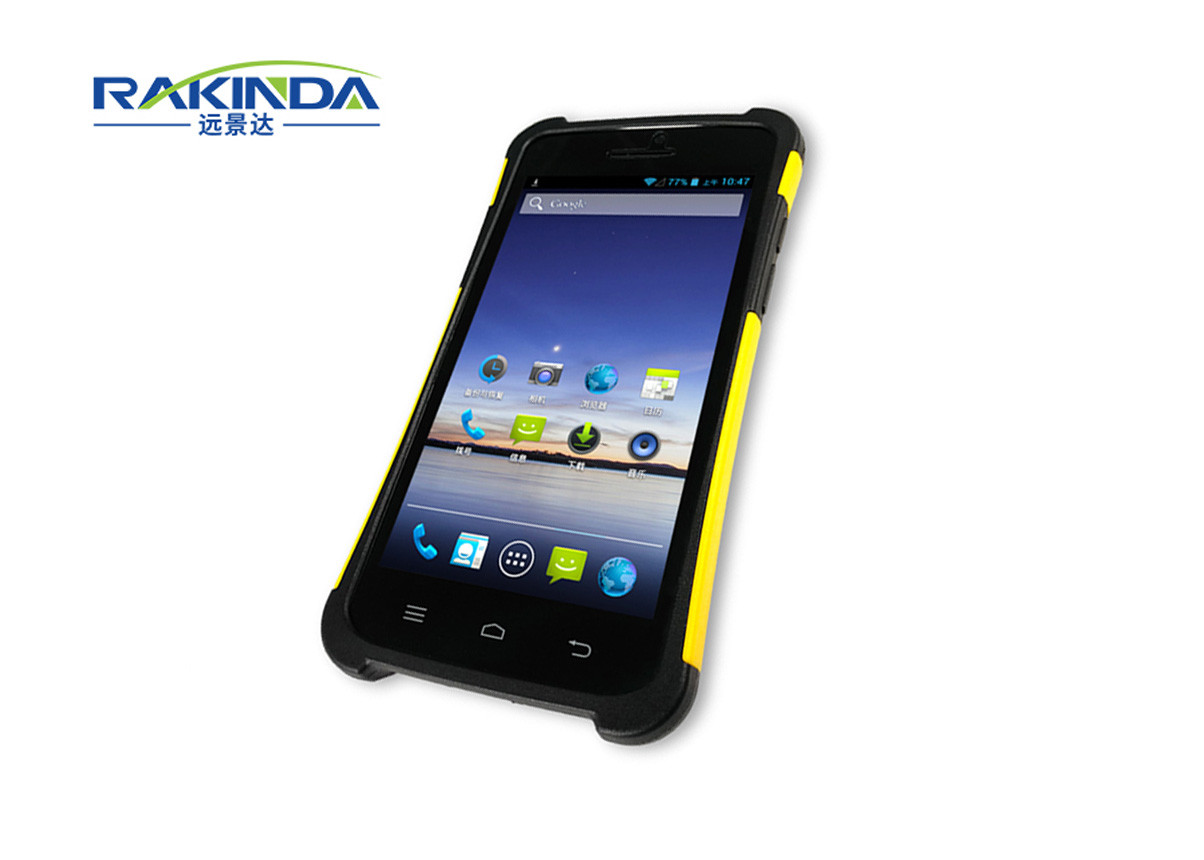

Rakinda China wireless handheld S1 rugged ip65 android pda/ reader handheld pda
| SPECIFICATION CHART |
| Physical Characteristics |
| Dimension | 147.2x74.5x12mm |
| Weight | 300g |
| screen | 5"HD(1280X720)screen |
| Audio | speaker, 2 microphones |
| Interfaces | micro USB support OTG |
| Performance |
| CPU | Quad core 1.2GHz,dominant frequency |
| RAM+ROM | 1GB+16GB |
| Expansion | Supports up to 32 GB Micro SD card |
| Developing Environment |
| Operating System | Android 5.1 |
| SDK | Rakinda Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| User Environment |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95%RH (Non-condensing) |
| Sealing | IP65 |
| Drop Specification | Multiple 1.5m (at least 20 times) to the concrete across the operating temperature range |
| Communication |
| WLAN | WiFi 802.11a/b/g/n(Dual-band 2.4GHz/5GHz) |
| Bluetooth | support bluetooth 3.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| NFC |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Camera |
| Camera | 13MP autofocus camera with flash |
| Barcode Scanners (Optional) |
| 2D Imager Scanner | Zebra SE4710/Honeywell N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal (KIX), etc |
1, express logistics. Typical courier, postal delivery, e-commerce delivery, tobacco distribution, warehouse inventory, as well as the terminal distribution of major manufacturers of daily necessities, pharmaceutical distribution, factory logistics in large factories, logistics warehouse to warehouse transport. According to different systems, the logistics system uses different handheld PDA expansion functions. The main functions are barcode scanning, contact / contactless IC card reading and writing and WiFi, Bluetooth data communication and so on.
2, three meter reading. In the foreseeable future, this is a relatively large capacity market. Three tables meter handheld PDA devices integrated into the expansion of the main functions of power infrared, bar code scanning and data communications and so on.
3 Retail. When more and more supermarkets and counter space have been unable to meet the rapid transaction time, handheld PDA-based mobile applications can be used for timely and accurate single product replenishment, receiving and dispatching, shelving, inventory, price verification, mobile Price management, mobile shopping guide to achieve quick cashier, divert the peak Passenger.
