LV5400 USB/RS485 Industrial QR Code Reader with High Integration

  • 1
  • 2
  • 3

Brand Name : Rakinda

Model Number : LV5400

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1pcs

Packaging Details : 1pcs/Box

Delivery Time : 5-8 work days

Imagin Sensor : 752×480 CMOS

Illumination : 0 ~ 100,000 LUX

Color Depth : 32 bit

Epth Of Field : 40mm-430mm

Sensor : CMOS

Keyword : QR code scanner module

Cable Length : 2M

Contact Now

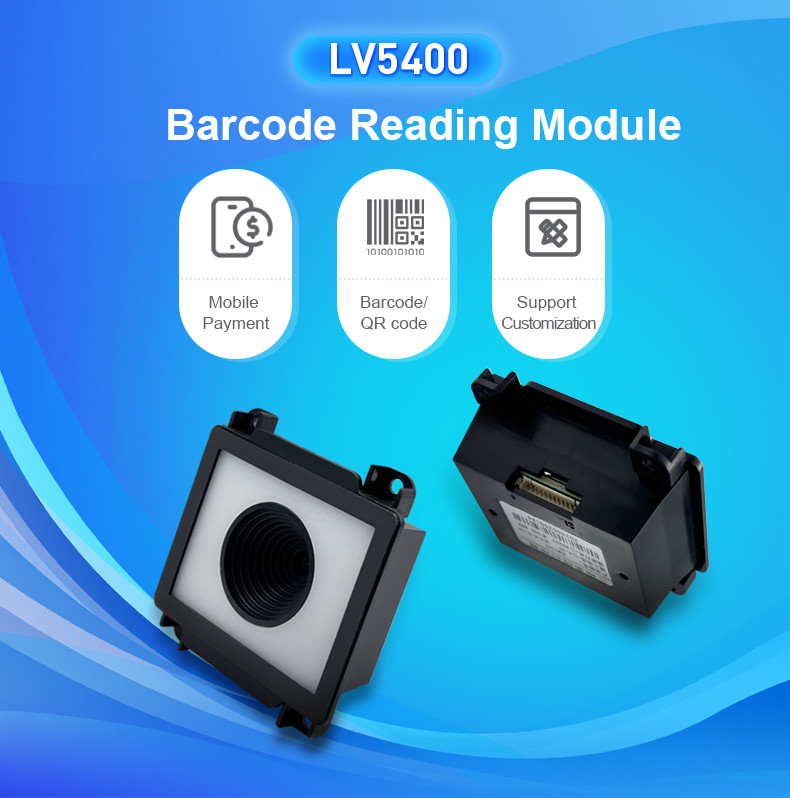

The LV5400 barcode scanning module is a cutting-edge industrial solution designed for demanding environments. Featuring high-density integration and multi-protocol compatibility (USB, TTL, RS232, RS485), this module delivers stable performance in manufacturing, logistics, and access control systems. Engineered with wide voltage input (4.5V–16V) and -20℃ to +60℃ operational tolerance, it excels in extreme conditions. The LV5400 supports 1D/2D barcodes, including QR, Data Matrix, and PDF417, with ±55° tilt sensitivity and 360° rotation adaptability. Its customizable OCR recognition and RGB LED lighting ensure flexibility for specialized industrial applications.



Industrial Barcode Reader Features:
- Industrial Durability: Operates in -20℃ to +60℃ with IP-rated reliability.
- Multi-Protocol Support: USB, TTL, RS232, RS485 interfaces for seamless integration.
- High-Speed Scanning: 640×480 CMOS sensor with 5mil accuracy for 1D/2D codes.
- Wide Voltage Compatibility: 4.5V–16V input for versatile power solutions.
- Customizable Lighting: RGB LEDs with adjustable brightness for low-light environments.



Parameters of Rugged QR Code Reader

Scan Performance Iimaging sensor 64 0× 48 0 CMOS
lighting Default white, customized RGB any color
Read code system 2D PDF417, Data Matrix, QR Code, AZTEC
1D And EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al
Reading accuracy 1D≥ 5mil 2 D≥ 7 mil
Typical reading of the depth of field 10-160mm Alipay payment code
20-130 mm EAN13 13 mil
Symbol Contrast ≥20%

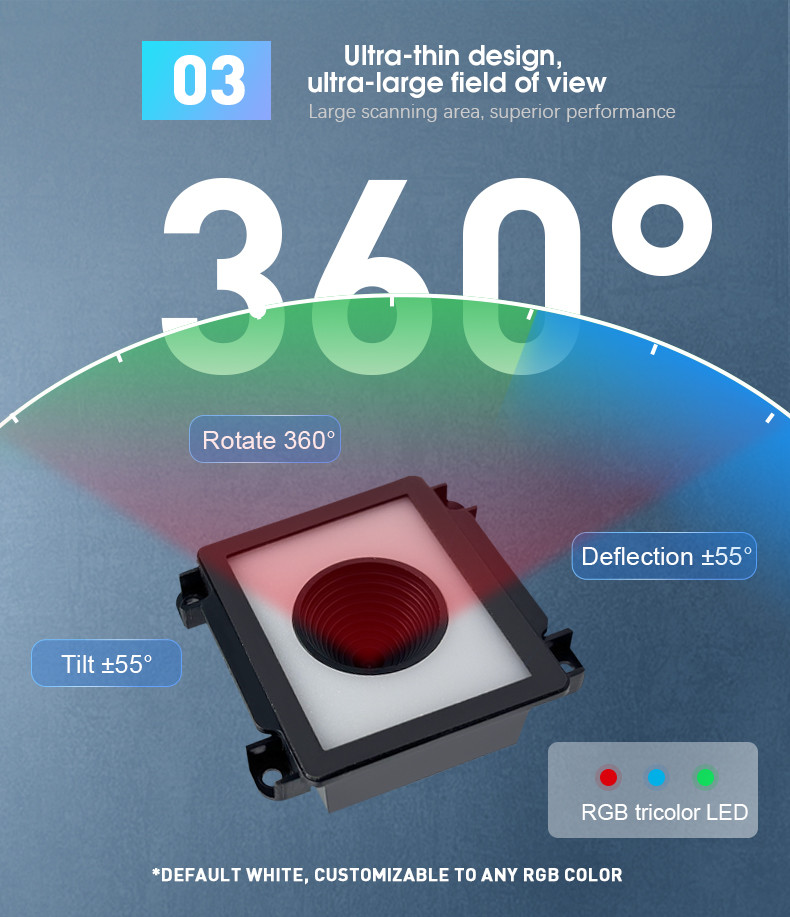

Bar code sensitivity Ttilt ± 55°, deflection ± 55°, and rotation 360°
Field of view Angle Horizontal 72°, vertical 54°
Mechanical and Electrical Parameters Communication interface USB (optional, HID, virtual serial port), TTL serial port; customized RS 232, RS48 5
Visual dimensions (mm) 64.8(D)× 60.5(W)× 23.7M ax (H)
Weight 27 g
Working voltage

Power supply is 1:4.5V-16V

Power supply 2:3-3.6 (3.3V power supply)

Note: Power supply 1 and power supply 2, not at the same time.


Rated current (Typical value) is less than 190 mA (5V input)
Enviromental Parameter Working temperature -20℃~+ 60℃
Storage temperature -40℃~+70℃
Working humidity 5%~95% (no condensation)
Environmental light 0~100,000LUX
Thermal Shock Resistance Maximum temperature 60 °C (140 °F)
Minimum Temperature -20 °C (-4 °F)
Cycle Index 30 minutes for high temperature; 30 minutes for low temperature
Period 24
