OEM 2D Barcode Reader Module for Seamless System Integration

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

OEM 2D Barcode Reader Module for Seamless System Integration

Brand Name : Rakinda

Model Number : LV5500

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1pcs

Supply Ability : 100pcs per month

Packaging Details : 1pcs/1box

Delivery Time : 5-8 work days

Barcode Scanner : 1D 2D QR Datamatrix PDF417

Scan Element Type : CMOS

Prompt : buzzer indicator

Colour Depth : 32 Bit

Command Control : Serial port protocol

Scan Engine : Laser

Power Consumption : 1.75W (Max)

Customized : Support

Storage : 520000Bits

Frequency : 2.4G

Resolution : >=3 mil

Contact Now

LV5500 is an OEM 2D barcode scanner module tailored for integrators seeking stable, accurate, and compact scanning solutions. Its wide interface support and flexible voltage options make it suitable for diverse hardware systems.



Key Features:
* Plug-and-play USB or serial communication (TTL, RS232, RS485)
* Fast decoding of 1D and 2D barcodes (including low-contrast QR codes)
* Small form factor: only 77.8×66.4×44.7mm
* Low power consumption: <190mA at 5V
* Custom OCR character set recognition (OCRA/OCRB)



Parameters

Scan Performance Imaging sensor 640×480 CMOS
Lighting White, LED 6500K
Read code system 2D PDF417, Data Matrix, QR Code,AZTEC
1D And EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al
Reading accuracy 1D ≥6mil 2D≥10mil
Typical reading of the depth of field 10-200CM Alipay payment code
20-120CM EAN13 13mil
Symbol Contrast ≥20%
Bar code sensitivity Ttilt ± 55°, deflection ± 55°, and rotation 360°
Field of view Angle Horizontal, 66°, and 50° vertical



Machinery

Electrical Parameters





 Communication interface USB (optional, HID, virtual serial port), TTL serial port; Customizable RS232, RS485
Visual dimensions (mm) 77.8(D)×66.4(W)×44.7 (H)
Weight 70g
Working voltage

Power supply is 1:4-6V (5V power supply) by default

Power supply 2: customized 5V-16V wide voltage

Note: Power supply 1 and power supply 2, choose one or the other, not at the same time
Rated current (Typical value) is less than 190 mA (5V input)
Enviromental Parameter Working temperature -20℃~+60℃
Storage temperature -40℃~+70℃
Working humidity 5%~95% (no condensation)
Environmental light 0~100,000LUX
Thermal Shock Resistance Maximum temperature 60°C (140 °F)
Minimum temperature -20°C (-4 °F)
Cycle index 30 minutes for high temperature; 30 minutes for low temperature
Period 24



OEM 2D Barcode Reader Module for Seamless System Integration


Product Tags:

3W Temperature Kiosk Sanitizer



1000ML Temperature Kiosk Sanitizer



2.1A Temperature Kiosk Dispenser


Buy cheap OEM 2D Barcode Reader Module for Seamless System Integration product

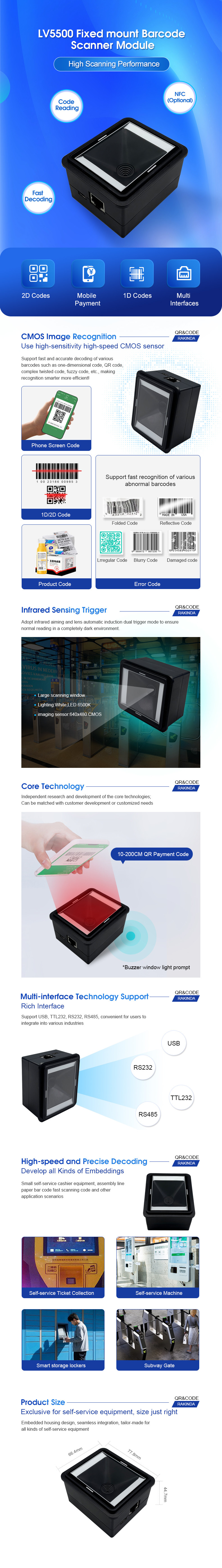

OEM 2D Barcode Reader Module for Seamless System Integration Images
