Phone PDF417 2D Barcode Scanner Module White LED Light Source for Swift Scanning
Designed primarily for such applications as electronic tickets/coupons, mobile marketing and office automation, the LV4500I series desktop 1D/2D barcode scanner is able to read barcodes from paper and mobile phones.
RD4500I 2d scanner-Specification.pdf
It boasts the following features:
1. Digital barcode data capture
Capable of reading 1D and 2D barcodes off mobile phones.
2. Printed barcode data capture
Capable of reading 1D and 2D barcodes printed on paper.
3. Swift scanning
Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.
4. Easy to use
Simple configuration by scanning the programming barcodes provided in the user guide.
Model | LV4500I barcode reader |

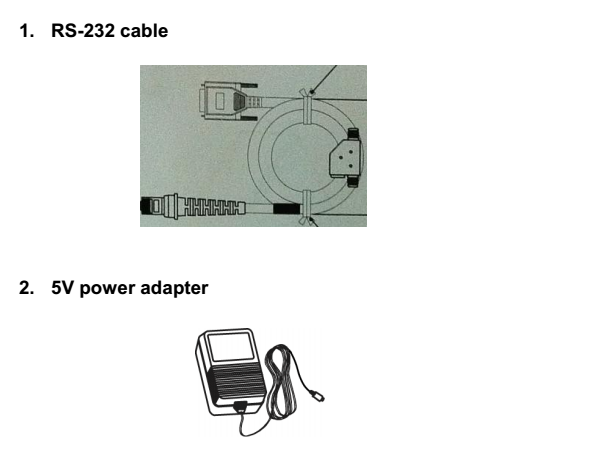

Interface | RS232 |
Scan Rate | Up to 300 scans/sec |
Image Sensor | 752×480CMOS |
Decode Rate | 200 scans/sec |
Resolution | 5mil |
Light Source | White LED |
Scan Window | 0 ~ 100,000 LUX |
Scan Window | 38.3mm×60.4mm |
Print Contrast Signal | ≥30% |
Power Consumption | 1.75W(max) |
Notification | Beep |
Dimensions | 78.2L×67.2W×62Hmm |
Weight | 300g |
Operating Temperature | -20°C - +60°C |
Humidity | 5% - 95% (non-condensing) |
Certificates | FCC Part15 Class B, CE EMC Class B |
| |
