CMOS Image Sensor QR Code Scanner Module 3.0V - 5.5V DC Operating Voltage

Brand Name : Rakinda

Model Number : LV4200 OEM Scan Engine

Certification : CE FCC ROHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 piece for a week

Delivery Time : 3-10 working days

Packaging Details : package in carton;

Name : Auto Code Scanner

Operating Voltage : 3.0~5.5VDC

MOQ : 1 piece

Usage : Turnstile

Module : LV4200 Qr Code Reader

Contact Now

CMOS Image Sensor QR Code Scanner Module 3.0V - 5.5V DC Operating Voltage​

1. Connection & Pinouts
The LV4200 is equipped with a 12-pin FPC connector and a Micro USB connector.
A. The 12-pin FPC connector can be used as TTL-232 interface or USB interface
B. The Micro USB connector can only be used as standard USB interface.
2. The LV4200 supports all mainstream 1D as well as PDF417, QR Code ( QR1, QR2, Micro QR ), Data Matrix and GS1-Databar ( RSS ) ( Limited / Stacked / Expanded versions ).


PerformanceImage Sensor 752×480 CMOS

 Light Source White LED

 Symbologies2DPDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
   050, 080, 100, 140)

  1DCode128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
   UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
   Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
   Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
   RSS-Expand)

 Resolution ≥5mil

 Typical Depth of FieldEAN-1310mm-55mm (13mil)

  PDF 41715mm-35mm (6.67mil)

  Data Matrix 15mm-40mm (10mil)

  QR Code10mm-50mm (15mil)

 Symbol Contrast ≥30% reflectance difference

 Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±40°

 Field of View Horizontal 80°, Vertical 56°

Mechanical/Interface TTL-232
Electrical
Operating Voltage 3.0~5.5VDC

 Current@5VDCOperating160mA

  Sleep12mA

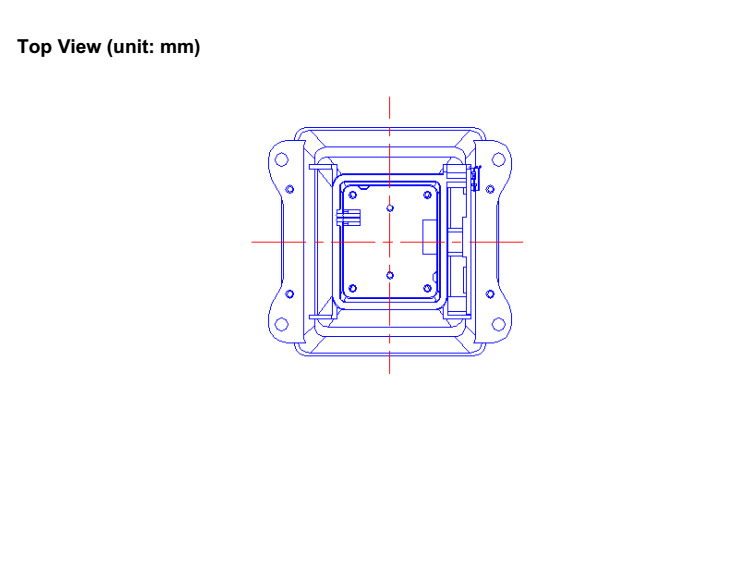

 Dimensions 65.1(D)×61.1(W)×43.6(H)mm

 Weight 41.5g

EnvironmentaL Operating Temperature -20℃~+60℃ (-4°F~140°F)

 Storage Temperature -40℃~+80℃(-40°F~176°F)

 Humidity 5%~95% (non-condensing)

 Ambient Light 0~100000lux (natural light)

AccessoriesUSB Cable Used to connect the LV 4200 to a host device.


CMOS Image Sensor QR Code Scanner Module 3.0V - 5.5V DC Operating VoltageCMOS Image Sensor QR Code Scanner Module 3.0V - 5.5V DC Operating Voltage


As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.
